A revolutionary installation for blast freezing and storage
The HEIN MODULUX² cabinet is a recently developed concept for blast freezing and storage of doughs and pastries, meeting all requirements. This installation features a modular construction that can be modified and expanded at will.
It is based on a blast freezer module to which up to five frozen storage modules can be adapted on the right side. Additionally, the installation can be completed on the left side with one to two refrigerated storage modules.
This installation offers the best cooling conditions for an efficient freezing process and optimal climatic storage conditions, providing the conditions needed to achieve the best dough and pastry quality.
The HEIN MODULUX² range was awarded the DBZ IBA Trophy for its innovative PID regulation.
MODULUX² key features
Modular construction: expandable at will to meet your needs
High-performance blast freezer: 50 kg of dough pieces from +26°C to -7°C in just 45 minutes
Award-winning PID regulation (IBA-TROPHY): 1-2% accuracy vs 10-15% for conventional systems
100% stainless steel interior and exterior — no plastic lining
External compressor: reduced noise and heat in the bakehouse
Fully automatic defrosting without impact on stored products
200-step air speed regulation for optimal storage climate
Superior insulation (120 & 80 mm) for reduced energy consumption
Technologies & innovations MODULUX²
Advanced systems for uncompromising freezing and storage quality
Innovative PID regulation
Award-winning regulation system (IBA-TROPHY) for unmatched precision:
- Response at 1-2% deviation vs 10-15% for conventional systems
- Near-linear regulation curve
- Maximum climatic product quality
200-step air regulation
Ultra-precise ventilation system for every product type:
- 200 air speed levels
- No drying out of stored products
- Guaranteed optimal climate during storage phase
High-performance blast freezer
Base module with record-breaking performance:
- Temperature range: -8°C to -36°C
- 50 kg of dough pieces frozen in 45 minutes
- Rapid passage through core temperature of -7°C
ML 2000 control system
Intelligent and intuitive control computer:
- Combined control for blast freezer, dough storage and refrigerated storage
- Clear and easy-to-use interface
- 100% maximisation of blast freezing capacity
Automatic defrosting
Fully automatic defrosting unit:
- Evaporator integrated in the blast freezer
- Heat blocked from reaching storage during defrosting
- No unwanted influence on products
100% stainless steel construction
Superior HEIN quality for unrivalled durability:
- Hatches, cladding and floors in stainless steel — no plastic
- Hinges with end stops
- Double sealing profiles with frame heating
MODULUX² performance
Numbers that speak for themselves
45 min
Freezing 50 kg
From +26°C to -7°C (60g dough pieces)
200
Air speed steps
Ultra-precise regulation
5
Max freezing modules
-8°C to -22°C per module
2×15
Trays per module
600×800 mm, adjustable in 25 mm steps
120 mm
Superior insulation
CFC-free material
PID
Award-winning regulation
IBA-TROPHY award
Operating principle
Rapidly reaching and surpassing the core temperature of -7°C with minimum moisture removal constitutes the decisive condition which, combined with maximised climatic storage, ensures excellent product quality.
The temperature of the blast freezer, which forms the base of the installation, is adjustable in the range of -8°C to -36°C. Efficient freezing of products takes place within this range. The theoretical freezing capacity allows 50 kg of fresh dough pieces (60 g individually) to go from +26°C to -7°C in just 45 minutes.
After the freezing phase, products are placed in the storage section, where the temperature can be regulated in the range of -8°C to -22°C.
The compressor should ideally be installed outside the bakehouse. This avoids noise and heat disturbance in the production area. Fresh air supply to the compressor considerably reduces operating costs and significantly increases the service life of the refrigeration system.
The installation is equipped with a fully automatic defrosting unit. The evaporator is integrated in the blast freezer section. During the defrosting process, heat emission towards the storage section is blocked, thus neutralising any unwanted heat influence on the stored products.
Construction, materials and quality criteria

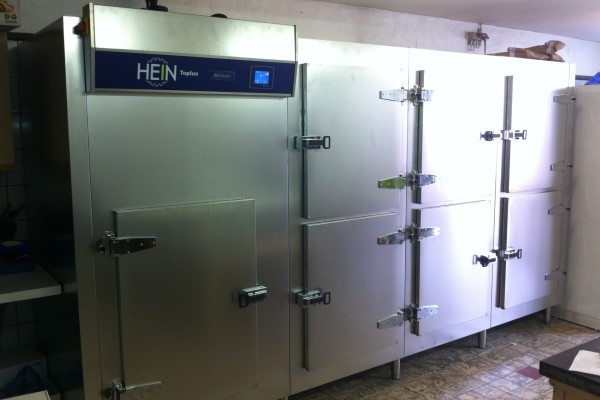

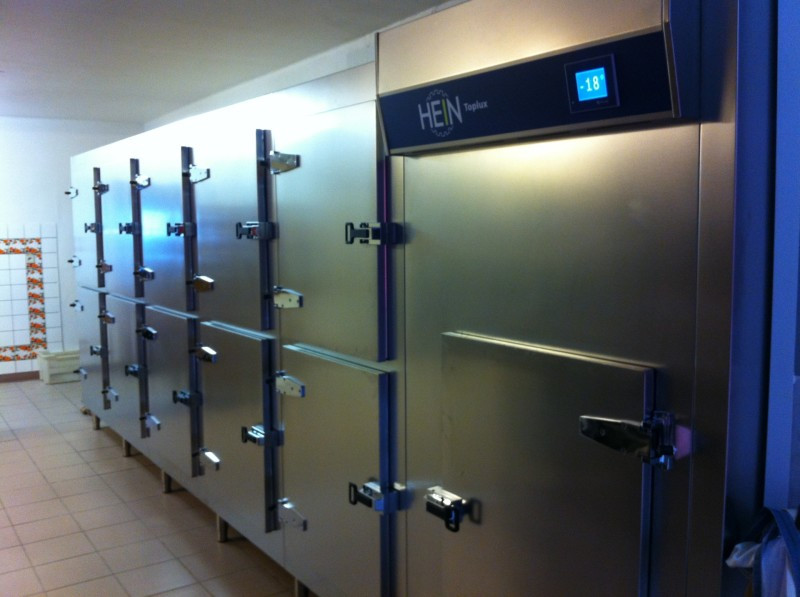

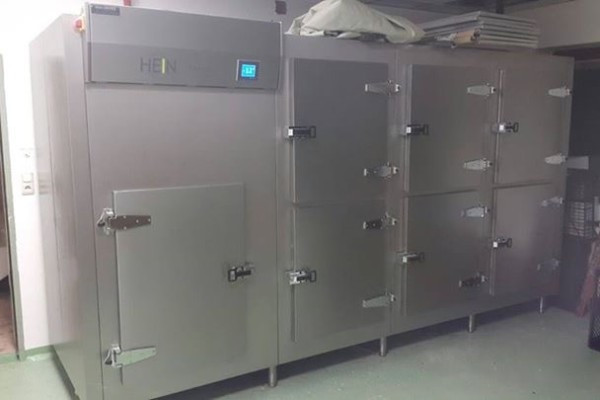

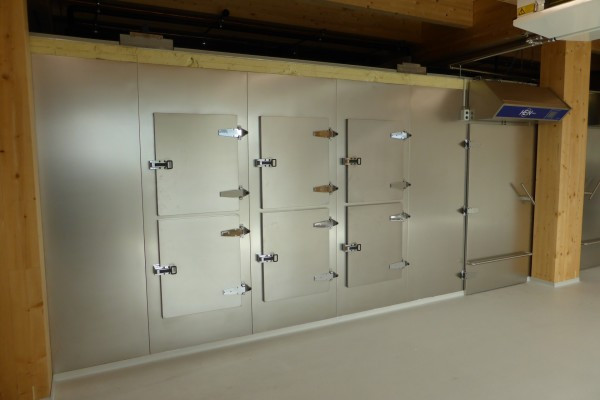

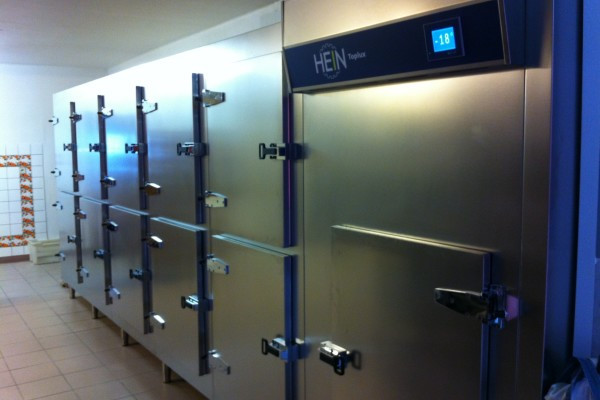

The HEIN MODULUX² cabinets are of modular construction. The blast freezer is the main module, equipped with the compressor and computer control. On this "base station", up to 5 frozen storage modules and up to 2 refrigerated storage modules can be mounted, each designed for 2×15 trays (600×800 mm).

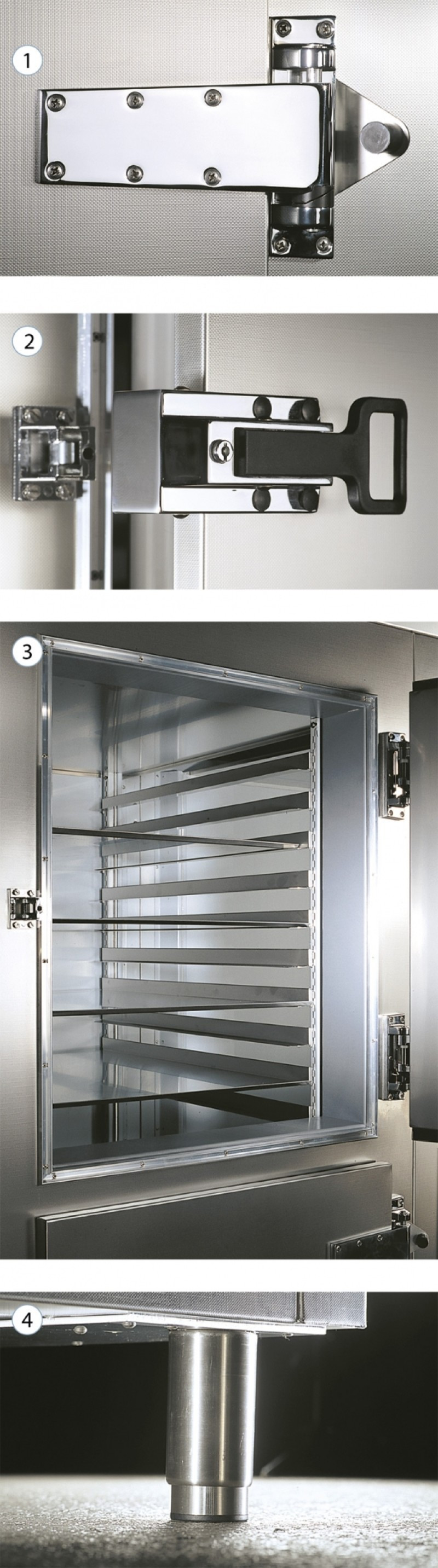

The hatches as well as all cladding and floors are made of stainless steel. There is no interior plastic lining. They are fitted with easy-to-clean hatch closures, hinges with end stops, double sealing profiles with frame heating and easily replaceable sealing strips.
This optimises daily use and ensures the installation an unrivalled service life, even under intensive use.

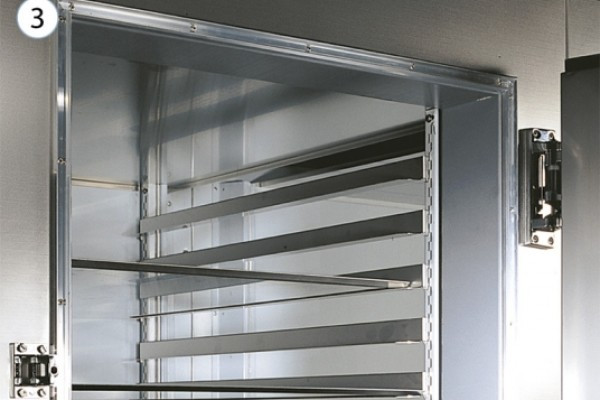

Each module is equipped with 2×15 pairs of angular supports that can be varied per pair at a distance of 25 mm. The HEIN MODULUX² units stand on extremely stable and adjustable feet, also made of stainless steel.
Minimum height: 2080 mm — Maximum height: 2180 mm.
Technical specifications
All specifications of the MODULUX² cabinet
| Equipment type | Modular blast freezer and storage cabinet |
| Blast freezer | Adjustable temperature from -8°C to -36°C |
| Frozen storage | 1 to 5 modules, -8°C to -22°C |
| Refrigerated storage (option) | 1 to 2 modules, +3°C to +12°C (dry cold for pastries) |
| Freezing capacity | 50 kg of dough pieces (60 g) from +26°C to -7°C in 45 minutes |
| Air regulation | 200 speed steps for optimal storage climate |
| Control system | ML 2000 computer with automatic PID regulation |
| Defrosting | Fully automatic unit, no thermal impact on storage |
| Insulation | 120 mm (freezer) and 80 mm (modules), CFC-free material |
| Capacity per module | 2×15 trays 600×800 mm, spacing adjustable in 25 mm steps |
| Compressor | Pre-mounted semi-hermetic on console, external or internal installation (R404A) |
| Dimensions | Height 2080-2180 mm, depth 1050 mm (blast freezer: 1135 mm) |
| Materials | 100% stainless steel interior and exterior, no plastic lining |
| Certifications | CE, DBZ IBA Trophy, made in Luxembourg |
The MODULUX² is also available without the blast freezer module.
Brochure and technical data sheet
Download the complete MODULUX² brochure to discover all specifications and configurations.

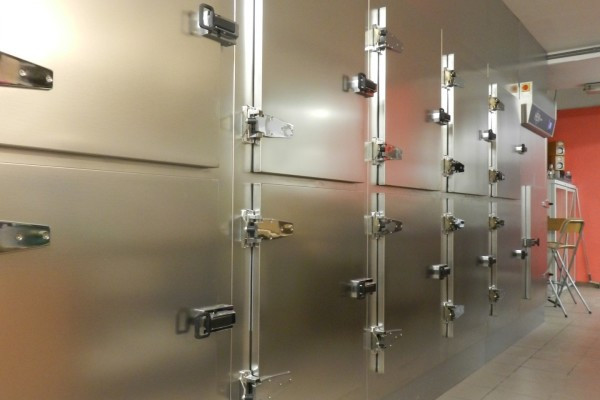

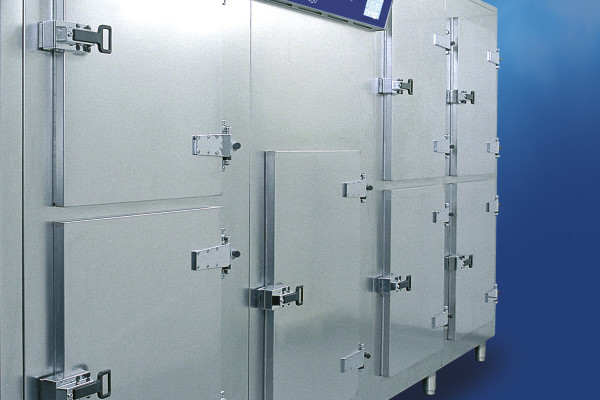

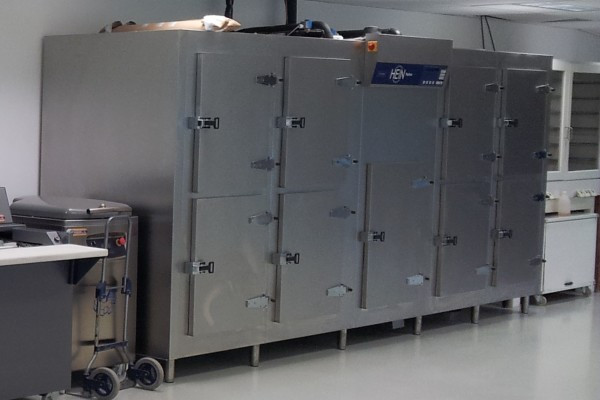

Photo gallery
