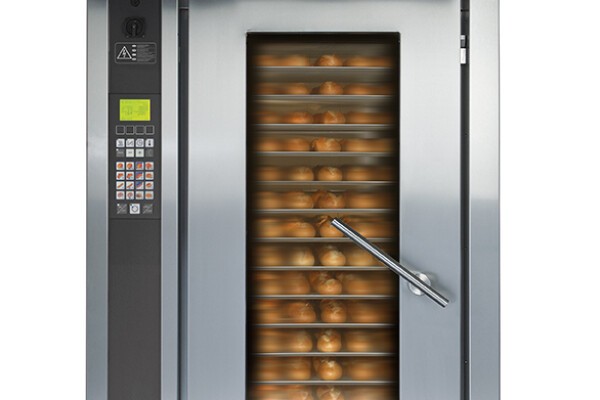

The compact counterpart to the proven HEIN LUXROTOR rotary rack oven
The SHOPLUX rotary rack oven has been specifically developed for high-volume locations and shop-in-shop concepts. Even during peak production periods, it delivers consistently professional baking results and first-class baked product quality.
Its well-engineered concept offers numerous advantages: outstanding baking results, optimum use of the available floor space and particularly easy operation thanks to intuitive pictogram-based controls. The SHOPLUX therefore combines premium quality with maximum cost-effectiveness and ease of use.
Everything included: as standard, the oven is supplied fully equipped with an exhaust hood, fan and pictogram control panel with display.
Key benefits at a glance
High-efficiency heat exchanger
Innovative Twin Airflow System (TLS)
4.32 m² of baking area on a footprint of just 1 m²
Rotating rack for 600 × 400 mm baking trays
Exceptionally robust construction in premium-grade stainless steel
Ergonomic loading of the rack trolley, no ramp or turntable required
High-performance steam system with eight injection points
Service-friendly design with easily accessible components
Double-glazed door featuring the proven lift-and-lower mechanism from the LUXROTOR series
SHOPLUX technologies & strengths
The proven technology of the LUXROTOR ovens, condensed into a compact format for the sales area
High-efficiency heat exchanger
Fast heat-up and constant temperature:
- Consistently professional baking results
- Performance maintained during peak production periods
- Connected load of 31.5 kW
Twin Airflow System (TLS)
An innovative air management system:
- Even heat distribution throughout the baking chamber
- Uniform baking on every level of the rack
- First-class baked product quality
High-performance steam system
Powerful steam for a perfect crust:
- Eight steam injection points
- Abundant steam from the very first seconds of baking
- Steam condenser available as an option
Intuitive pictogram controls
Particularly easy operation:
- Pictogram control panel with display, supplied as standard
- Immediately mastered by sales staff
- Great ease of use in daily operation
Robust stainless steel construction
HEIN quality, built to last:
- Premium-grade stainless steel
- Double-glazed door with the LUXROTOR lift-and-lower mechanism
- Ergonomic loading without ramp or turntable
Service-friendly design
A design conceived for maintenance:
- Easily accessible components
- Fast interventions and reduced servicing costs
- Exhaust hood and fan integrated as standard
SHOPLUX performance
Figures that speak for themselves
4.32 m²
Baking area
On just 1 m² of floor space
1 m²
Footprint
1,000 × 1,000 mm
600×400 mm
Tray size
Rotating rack
31.5 kW
Connected load
High-efficiency heat exchanger
8
Steam injection points
High-performance steam system
18
Maximum tray levels
Rack trolley with top suspension (option)

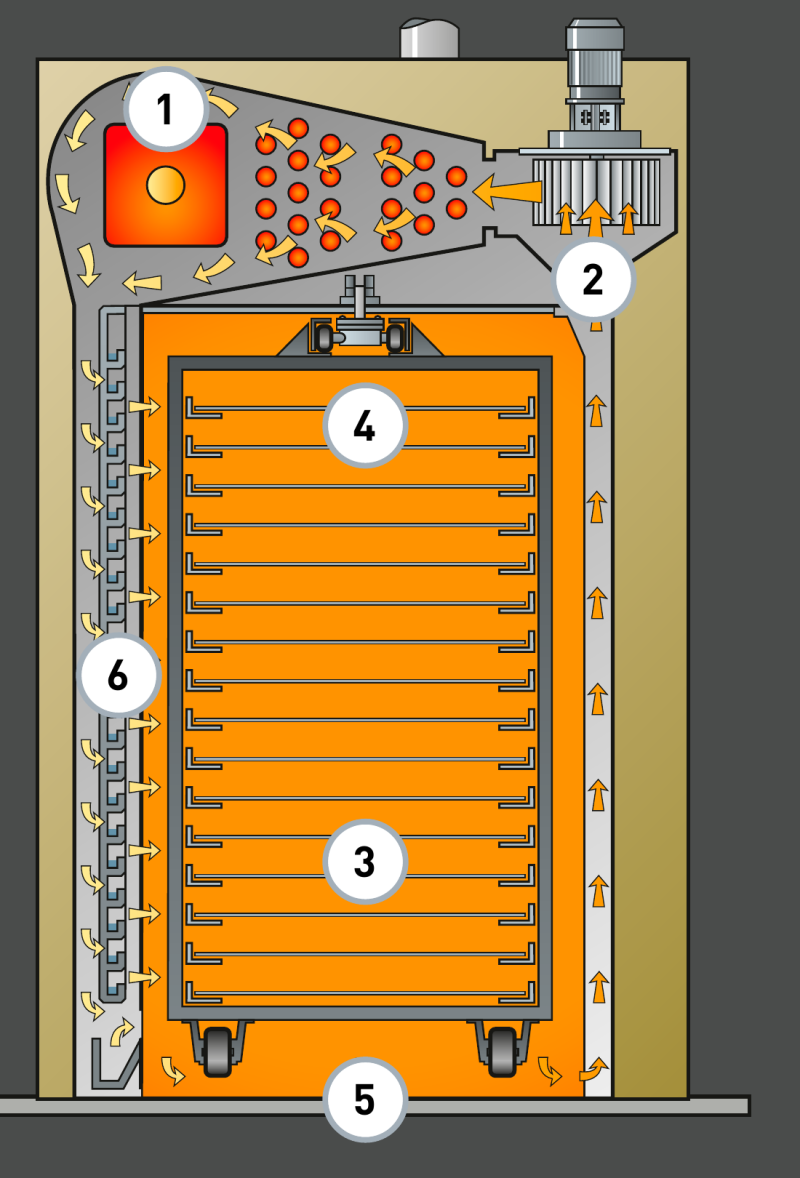

How the SHOPLUX works
The diagram alongside illustrates the key components behind the performance of the SHOPLUX oven:
- High-efficiency heat exchanger: the heat source, integrated into the upper part of the oven
- Twin Airflow System (TLS): the turbine ensures optimised air management throughout the baking chamber
- Baking chamber: 4.32 m² of baking area on a footprint of just 1 m²
- Rotating rack: for 600 × 400 mm baking trays
- Ergonomic loading: the rack trolley is loaded directly, with no ramp or turntable
- High-performance steam system: eight injection points for abundant, even steam
Technical specifications
All the specifications of the SHOPLUX oven
| Oven type | Compact rotary rack oven for in-store bake-off |
| Dimensions | 1,000 (W) × 1,000 (D) × 2,300 mm (H) |
| Exhaust hood | 500 mm deep, supplied as standard with fan |
| Tray size | 600 × 400 mm |
| Baking area | 4.32 m² on a footprint of just 1 m² |
| Connected load | 31.5 kW |
| Heating | High-efficiency heat exchanger |
| Air circulation | Innovative Twin Airflow System (TLS) |
| Steam | High-performance steam system with eight injection points |
| Rack trolley | Rotating rack, ergonomic loading without ramp or turntable |
| Construction | Exceptionally robust, premium-grade stainless steel |
| Door | Double glazing with the proven lift-and-lower mechanism from the LUXROTOR series |
| Controls | Intuitive pictogram control panel with display (standard) |
| Servicing | Service-friendly design, easily accessible components |
| Certifications | CE, made in Luxembourg: HEIN quality since 1882 |
Everything included: the oven is supplied as standard fully equipped with an exhaust hood, fan and pictogram control panel with display. Subject to technical alterations.
Applications: in-store bake-off
The SHOPLUX brings professional HEIN baking quality to the very place where your customers buy
High-volume sales locations
- On-site bake-off of breads, viennoiseries and rolls
- Consistent results even during peak production periods
- Fresh products throughout the day
- Only 1 m² of floor space required
Shop-in-shop concepts
- Compact format suited to retail floor areas
- Exhaust hood and fan integrated as standard
- Simple pictogram controls for sales staff
- First-class baked product quality
SHOPLUX options & accessories
Complete your SHOPLUX oven with the optional HEIN equipment to adapt it perfectly to your sales area.
Standard equipment
-
Exhaust hood with fan
500 mm deep exhaust hood and integrated fan, supplied as standard.
-
Pictogram control panel with display
Intuitive pictogram controls, supplied as standard for immediate hands-on use.
-
600 × 400 mm rotating rack
Rotating rack for 600 × 400 mm baking trays, loaded without ramp or turntable.
Optional equipment
-
Rack trolley with top suspension
Rack trolley with top suspension and up to 18 tray levels.
-
Steam condenser
Steam condensation for a more comfortable sales area, without any complex flue connection.
Need a tailor-made configuration?
Contact our experts
HEIN warranty & service
HEIN builds equipment made to last. Every SHOPLUX oven benefits from our quality commitment and our after-sales service network.
Manufacturer's warranty
Full protection for your investment:
- Manufacturer's warranty according to HEIN terms
- Manufactured in Luxembourg since 1882
- Industrial-grade components
- Rigorous testing before shipping
After-sales service
A network of experts at your service:
- Partner network throughout Europe
- Spare parts at reasonable prices
- Easily accessible components for fast interventions
- Long-term partnership and collaboration
Documentation & training
Complete resources to master your oven:
- Multilingual user manual
- Pictogram controls, no complex training required
- Commissioning training
- Advice from our experts on in-store bake-off
Brochure and technical data sheet
Photo gallery

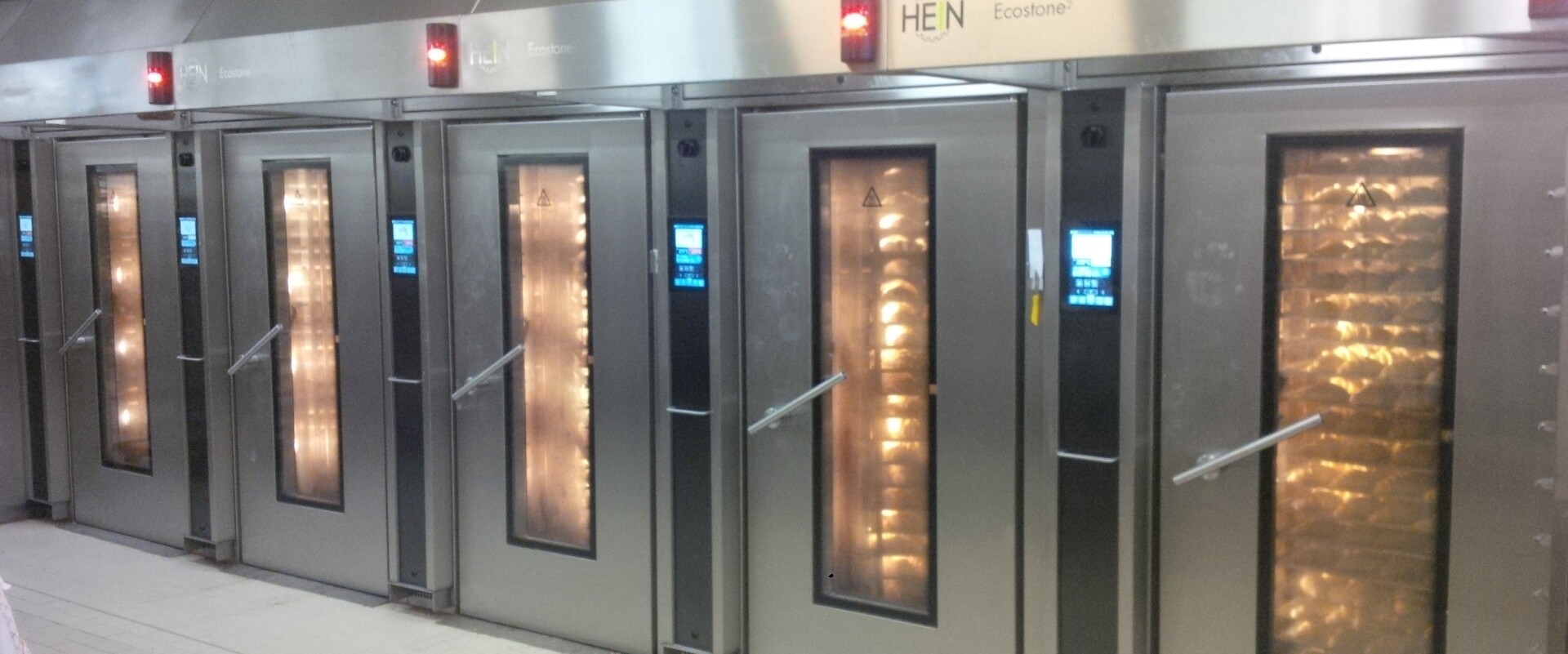

Discover the SHOPLUX oven and the HEIN rotary rack oven range

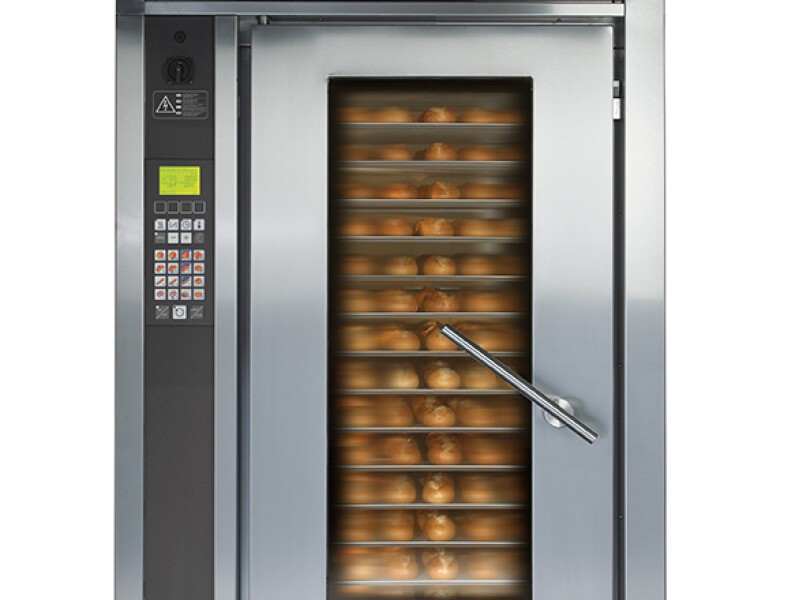

Equip your store with the SHOPLUX
Our experts will advise you on integrating the SHOPLUX oven into your store or your shop-in-shop concept. Enjoy professional HEIN baking quality on just 1 m² of floor space.
